5 Types of Incubators

1. Cooled incubators – ST Series

Perfect for incubation of samples in a stable environment, regardless of ambient conditions, at the temperature from +3 up to +70°C

POL-EKO offers 10 models of Cooled incubators with capacities from 55 to 1500 liters

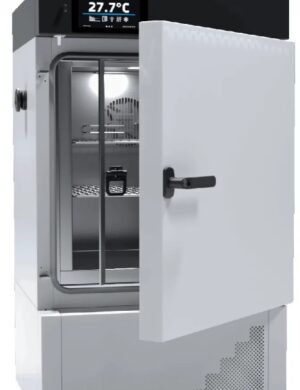

2. Cooled incubators – ILW Series

Available in a forced-air version. These are devices have no ventilation chimney.

Temperature from (-10 option) 0 up to +70°C

The ILW incubators can be optionally equipped with a photoperiod or phytotron

function, allowing to control not only temperature but also lighting, simulating

day/night conditions.

POL-EKO offers 5 models of incubators with capacities from 56 to 749 liters.



3. Peltier Cooled Incubator – ILP / STP Series

Innovative and ecological incubators ILP/STP with cooling system based on the Peltier cell technology.

Temperature from (-10 option) 0 up to +70°C

Available in 4 models with capacities of 56 to 750 liters



Advantages of incubators with Peltier modules are:

No vibrations – through the use of Peltier cells, vibrations previously generated by the compressor are eliminated

Fluctuation and variation – the cooling system based on Peltier cells allows to achieve excellent fluctuation and variation additionally the time of reaching the set temperature, e. g. after opening the door, is much shorter

Smaller design – Peltier cell cooling system reduces the size of the device

Environmentally friendly – removing the compressor eliminates the use of refrigerant gases that have a negative impact on the environment



4. Laboratory Incubator – CL Series

Maintain a constant temperature from +5 °C above ambient temperature to 100 °C. CL laboratory incubators are available with double door (external solid, internal glass).

Optionally, the external door can be fitted with a vision window to allow observation of samples.

Available in 9 models from 15 to 1000 liters

5. CO2 Incubator – ILC Series

Temperature Range +5 °C above ambient temperature to 50 °C.

An important aspect of working with a CO2 incubator is maintaining sterility inside the device to prevent contamination of cultures by bacteria, fungi, or viruses. Therefore, CO2 incubators are equipped with various disinfection systems, such as UV radiation, air filtration, or heating systems, to maintain the purity of the culture environment.

Advantages of CO₂ incubators:

• Handle with key lock
• Main power switch flush with the housing prevents unintentional CO₂ switch off
• CO₂ gas-mixing jet with the Venturi effect to ensure quicker atmosphere mixing and more homogeneous 2 distribution Multiple temperature sensors for accurate measurement
• Magnetic handle for ergonomic internal door opening
• Rack with perforated shelves for optimal shelf positioning
• Two access ports (Ø30 mm), the first on the left wall and the second on the rear, both secured with silicone plugs Silicon gasket
• Water pan to provide optimal humidity
• Open door sensor
• Height adjustable feet
• Contamination protection:
  • Hot-air sterilization at 180°C
  • Fan-less construction
  • Smooth, easy to clean stainless steel interior with rounded corners
  • Sterilizable, drift-free infrared CO₂ sensor
  • Inner glass door for sample viewing without changing the conditions in the chamber
  • No hiding spaces

Available in 2 models from 180 to 260 liters

More inform can be found at Cooling and Heating Devices – POL-EKO

2 Types of Climatic Chamber

1. With Compressor Type‎ – KK Series

Available sizes from 100 to 750 Litres

Available with Ultrasonic or Steam Humidifier

In the KK and KKS climate chambers, stability testing of pharmaceutical products can be carried out in accordance with the requirements of the ICH Q1A standard for general thermal and humidity conditions.



Parameter	KK climate chamber with Ultrasonic humidifier	KKS climate chamber with Steam humidifier
operating temperature range	0°C. . . +60°C	0°C. . . +100°C
FIT operating temperature range	0°C. . . +60°C (with lighting on +10°C to +50°C)	–
Relative humidity range	Area “A”	area “A+B”
feedwater (conductivity)	deionized (<1 μS/cm)	water (125-1250 μS/cm)
source of feedwater	·       deionized water tank ·       deionizer ·       internal deionized water network	·       water mains
drain	·       sewage system	·       sewage system
power supply	·       230V 50-60Hz	·       230V 50-60Hz ·       400V 50-60Hz







2. With Peltier Cooled Type KKP + Phytotron (New)

Available sizes with 2 sizes 240 and 750 Litres

With Steam Humidifier allows possible applications

• Stability tests according to ICH Q1A
• Breeding of certain insects, mice
• Plant cultivation
